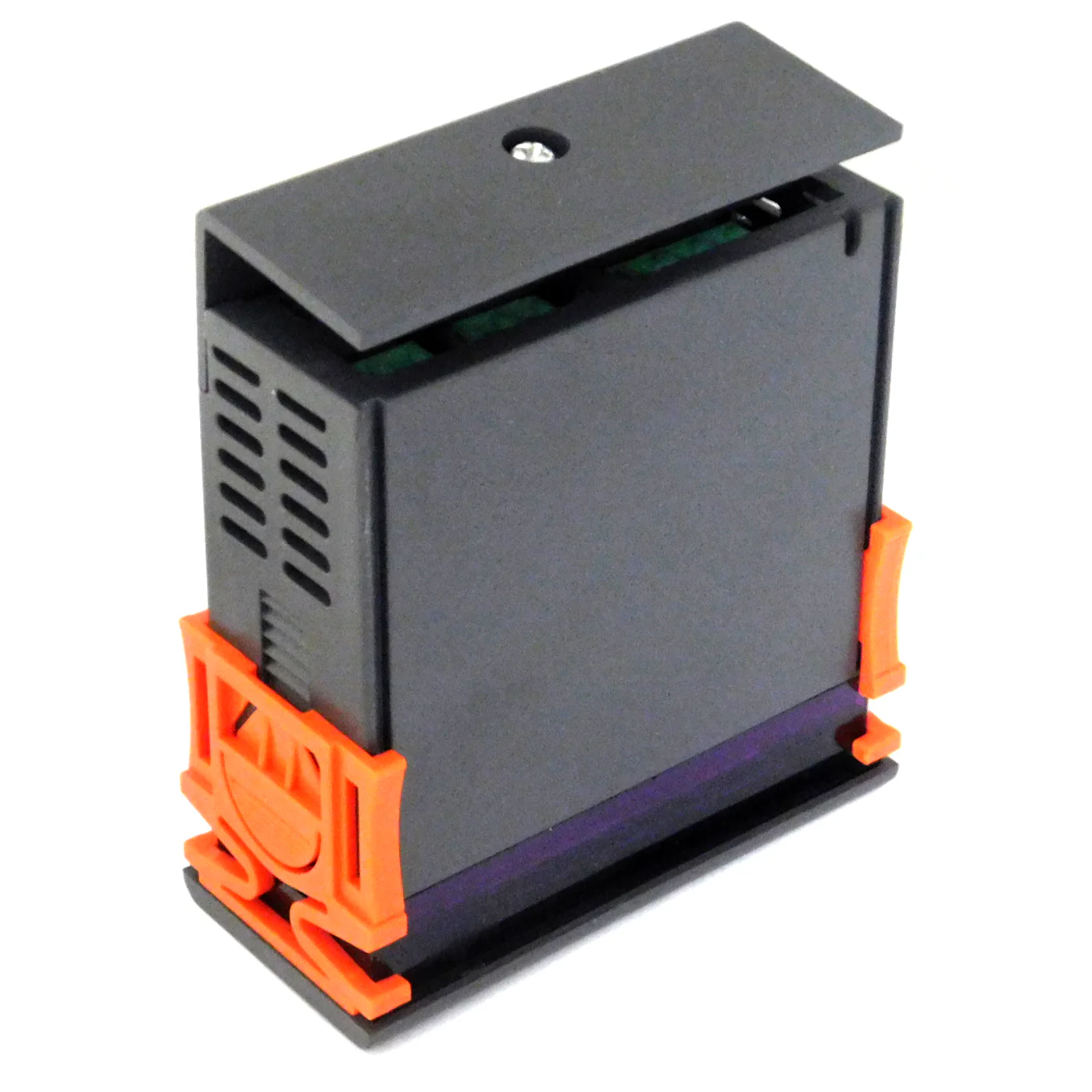

Simply Aquaria TC225 Temperature Controller

Temperature differential setting range: 0.1°C - 10.0°C (Elitech E1000 only 0.5 minimum)

Adjustable compressor delay between switching heating/cooling to prevent short cycling

Display permanently lit to enable easy viewing of temp status

2m plastic coated sensor

Features:

• Temperature Calibration facility
• 16A Heating Control (max resistive load 1840W)
• 16A Cooling Control (max inductive load max 500W)

Please note - this is a controller module only - unit will need to be wired and mounted by the user.

Dimensions:

• Front panel size: 75mm(L) × 34.5mm(W)
• Mounting size: 71mm(L) × 29mm(W)
• Product size: 75mm(L) × 34.5mm(W) × 85mm(D)

Specifications:

• Temperature measuring range -50°C ~ 99°C
• Temperature differential range 0.1°C ~ 10.0°C
• Compressor delay range 1 ~ 10 mins.
• Temperature calibration range -10°C ~ 10°C
• Display Resolution: 0.1°C
• Accuracy: ± 1°C
• Power supply: 220VAC±15%, 50/60HZ
• Temp Sensor: 1 x 2 metre NTC sensor
• 16A Heating Control (resistive load, such as heater) max 1840W
• 16A Cooling Control (inductive load, such as a chiller) max 500W
• Operating Temperature Range: 0°C ~ 60°C
• Operating Humidity range: 20% ~ 85%
• Power consumption:  3W
• Power off memory function: Settings retained when power lost
